A typical residential split system air conditioner consists of several key parts working together to keep your home cool and comfortable. If you’ve ever wondered how this system works or what exactly makes up the unit cooling your space, you’re in the right place.
Understanding these components can help you take better care of your air conditioner and even spot issues early. Keep reading to discover the essential parts inside your split system and why each one matters to your comfort.
Credit: www.carrier.com
Main Parts Of A Split Ac
The indoor unithas key parts that cool your room. It includes the evaporator coil, which takes heat from inside air. The blower fanpushes cool air into the room. The air filtercleans dust and dirt from the air. A drain pancollects water made during cooling. The thermostatcontrols the temperature you want.
The outdoor unitworks outside your house. It has a compressorthat pumps refrigerant to move heat. The condenser coilreleases heat outside. The fanhelps cool the condenser coil by blowing air. The protective grillekeeps parts safe from damage. Pipes connect both units to carry refrigerant.

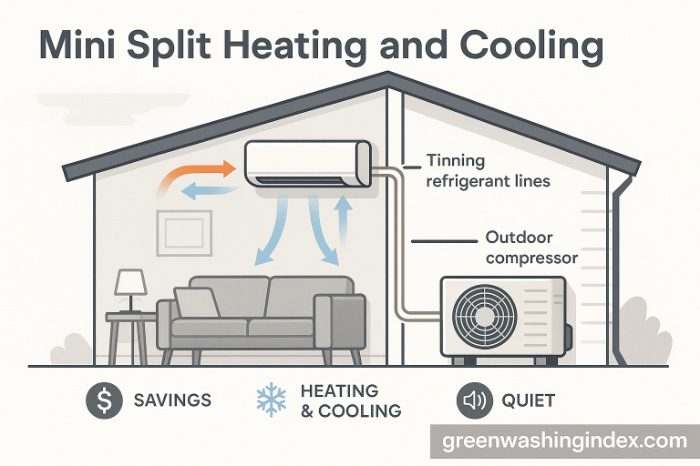

Credit: www.greenbuildermedia.com
Indoor Unit Details
The evaporator coilcools the air inside the home. It absorbs heat from the air and sends it outside. This helps make the room cooler.
The blower fanmoves air across the evaporator coil. It pushes cold air through the vents into rooms. This keeps air flowing smoothly.
The air filtercleans dust and dirt from the air. It stops particles from entering the system. A clean filter helps the air conditioner work well.
The thermostatcontrols the temperature inside the home. It tells the air conditioner when to turn on or off. This keeps the room at the right temperature.
Outdoor Unit Details
The compressoris the heart of the outdoor unit. It pumps refrigerant through the system. This part raises the refrigerant’s pressure and temperature.
The condenser coilreleases heat from the refrigerant. It changes the hot gas into a cooler liquid. This helps cool the indoor air.
The cooling fanblows air over the condenser coil. This speeds up heat removal. It keeps the unit working efficiently.
- Refrigerant linescarry refrigerant between indoor and outdoor units.
- They connect the compressor and condenser coil to the indoor evaporator.
- These tubes are sealed to stop leaks and keep the system sealed.
Refrigeration Cycle Basics
The cooling processin a split system starts with the refrigerant absorbing heat inside the house. The refrigerant flows through the indoor coil, where it turns from liquid to gas. This change takes heat from the air, making the room cooler.
Heat exchangehappens when the refrigerant moves outside. The hot gas releases heat to the outside air and turns back into liquid. This keeps the refrigerant ready to absorb heat again.
The role of refrigerantis to carry heat from inside to outside. It changes between liquid and gas to move heat. This cycle keeps the home cool and comfortable.
Electrical Components
The control boardacts as the brain of the air conditioner. It manages all electrical functions and ensures the system runs smoothly. It sends signals to other parts to start or stop working.
Capacitorsstore and release energy to help motors start and run. They keep the compressor and fan motors moving efficiently. Without capacitors, the system won’t function properly.
- Wiringconnects all electrical parts. It carries power and signals throughout the unit.
- Sensorsmonitor temperature and system performance. They send data to the control board to adjust operations.
Credit: www.carrier.com
Installation Essentials
Positioning the indoor unitis key for good air flow. Place it high on a wall for cool air to spread well. Avoid places near heat sources or direct sunlight. Keep space around it clear for easy service and air flow.
Outdoor unit placementneeds a flat, stable surface. It should have room to breathe with no obstructions. Keep it away from dusty or smoky areas. Proper spacing helps the unit work quietly and last longer.
Connecting refrigerant linesmust be done carefully. Use insulated copper pipes to stop heat loss. Make sure the lines are tight and leak-free. Proper connection ensures good cooling and saves energy.
Maintenance Tips
Cleaning filterskeeps the air fresh and the system efficient. Remove filters gently and wash with water. Let them dry completely before placing them back. Clean filters every month or two during heavy use.
Checking refrigerant levelsensures the air conditioner cools well. Low refrigerant means the system works harder and uses more energy. Call a professional to check and refill refrigerant if needed. Never try to handle refrigerant on your own.
Inspecting electrical partsavoids breakdowns and fires. Look for loose wires, burnt smells, or damaged parts. Turn off power before inspecting. If anything looks wrong, ask a technician to fix it safely.
Frequently Asked Questions
What Components Make Up A Residential Split System Air Conditioner?
A typical residential split system air conditioner includes an indoor unit, outdoor unit, refrigerant lines, and a thermostat. The indoor unit houses the evaporator coil and blower, while the outdoor unit contains the compressor and condenser coil. These parts work together to cool your home efficiently.
How Does The Indoor Unit Function In A Split Ac?
The indoor unit circulates cool air by blowing it over the evaporator coil. It absorbs heat from indoor air and transfers it to the refrigerant. This process cools the air, which then flows back into the rooms, maintaining a comfortable temperature.
Why Is The Outdoor Unit Important In Split Ac Systems?
The outdoor unit compresses and cools the refrigerant gas. It releases the absorbed indoor heat outside through the condenser coil. This unit plays a vital role in maintaining the refrigeration cycle and ensuring efficient cooling performance.
What Role Do Refrigerant Lines Play In A Split System Ac?
Refrigerant lines connect the indoor and outdoor units. They carry refrigerant between the evaporator coil and condenser coil. These lines enable heat transfer, which is essential for the cooling process in a split system air conditioner.
Conclusion
A typical residential split system air conditioner has two main parts. One stays inside to cool the room. The other stays outside to release heat. They work together to keep your home comfortable. Understanding these parts helps you choose and maintain your AC.
Simple design, effective cooling. That’s why many homes use split system air conditioners today.
