Is your air conditioner suddenly not working, leaving you sweating in the heat? Before calling a repair technician, there’s a simple step you can take that might save you time and money: checking the fuse.
Knowing how to check your air conditioner fuse can help you quickly identify if a blown fuse is the problem or if something else needs attention. In this guide, you’ll learn easy, step-by-step instructions to inspect your AC fuse safely and effectively.
By the end, you’ll feel confident handling this small but important part of your cooling system—keeping your home comfortable without unnecessary delays. Keep reading to find out how to take control of your air conditioner’s health right now.

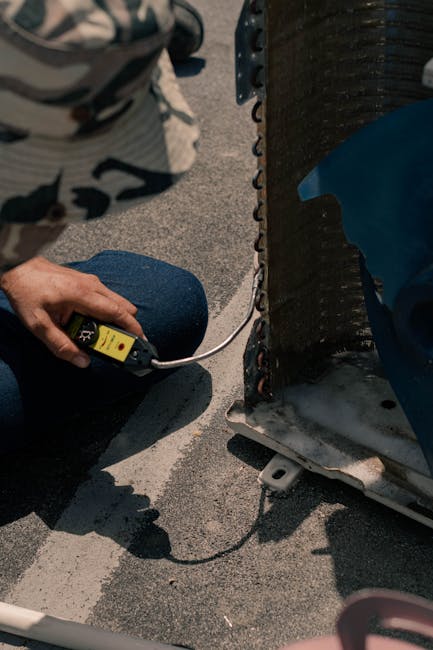

Credit: evergreencomfort.com
Signs Of A Blown Ac Fuse
No power to the AC unitis a clear sign of a blown fuse. The unit will not turn on at all. Check the power source and circuit breaker to be sure. If those are fine, the fuse might be the problem.
Frequent AC shutdownscan also indicate a fuse issue. The unit may start but stops suddenly. This happens because the fuse is weak or damaged and cannot handle the power load.
A burning smell near the fuse boxis a serious warning. It means the fuse or wiring may be overheating. This can be dangerous and should be checked immediately to avoid fire risks.

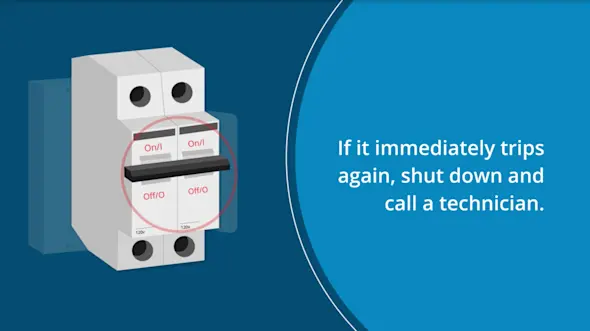

Credit: www.searspartsdirect.com
Tools Needed For Fuse Inspection
A multimeteror continuity testerhelps check if the fuse is working. These tools show if electricity passes through the fuse or not.
- Screwdriversare needed to open the AC panel safely. A flat or Phillips head screwdriver works well.
- Protective gearlike gloves and safety glasses keep you safe from electric shocks or debris.
Using the right tools makes the fuse inspection safer and easier. Always handle tools carefully.
Locating The Ac Fuse
The service panel is usually found near the main electrical box. It often has a metal cover that can be lifted or removed. Inside, the fuse for the air conditioner is often labeled clearly. Look for words like “AC,” “air conditioner,”or “compressor fuse.”
Fuses come in different types and sizes. The most common are glass tube fusesand cartridge fuses.Glass tube fuses are small, clear cylinders with metal ends. Cartridge fuses are thicker and cylindrical but made of metal and ceramic. Check the fuse rating printed on the fuse or nearby label to match the replacement.
- Turn off the main power before opening the panel.
- Wear insulated gloves to avoid shocks.
- Use a flashlight if the panel area is dark.
- Do not touch other wires or parts inside the panel.
Step-by-step Fuse Check
First, turn off the powerto your air conditioner at the main breaker. This is very important for safety. Never work on electrical parts with power on.
Next, locate the fuse inside the air conditioner’s fuse box or panel. Carefully remove the fuseusing a fuse puller or insulated tool. Avoid touching metal parts to prevent shocks.
Use a multimeter set to continuity mode to test the fuse. Place the probes on both ends of the fuse. A beep or low reading means the fuse is good.
Interpreting resultsis simple:
- If the multimeter beeps or shows continuity, the fuse works fine.
- If there is no beep or infinite reading, the fuse is blown and needs replacement.
Replacing A Blown Fuse
Choosing the correct fuse ratingis crucial for safety and performance. Check the old fuse for its number or write down the rating from the AC manual. Use a fuse with the same amperage and voltageto avoid damage.
Installing the new fuse requires care. Turn off the power supply before removing the blown fuse. Place the new fuse in the holder firmly but gently. Make sure it fits snugly to maintain a good connection.
Post-replacement testing confirms the fix. Restore power and turn on the air conditioner. Watch for normal operation without any sparks or noise. If the AC does not start, check the fuse placement again or consult a technician.
Credit: northnjhvac.com
Preventing Fuse Issues
Regular maintenancehelps keep your AC and fuse in good shape. Clean the filters often. Check the wiring for any damage or loose connections. This stops many common problems before they start.
Avoid electrical overloadsto protect the fuse. Do not plug too many devices into one outlet. Make sure the AC unit has its own power source. This lowers the risk of tripping the fuse.
Call a professionalif the fuse blows repeatedly. They can find hidden issues fast. Do not try to fix complex electrical parts yourself. Safety first!
Frequently Asked Questions
How Do I Know If My Ac Fuse Is Blown?
To check if your AC fuse is blown, first turn off the power supply. Locate the fuse box and remove the fuse. Inspect the fuse for a broken filament or burn marks. If it looks damaged, replace it with a new one of the same rating.
Where Is The Fuse Located In An Ac Unit?
The fuse in an AC unit is typically located in the disconnect box outside your home. This box is mounted near the outdoor condenser unit. Open the box carefully to access the fuses. Always ensure the power is off before inspecting or replacing any fuses.
What Tools Do I Need To Check Ac Fuses?
To check AC fuses, you need a multimeter and a screwdriver. The screwdriver is used to open the disconnect box. A multimeter helps you test the fuse’s continuity. Ensure the multimeter is set to the correct setting to accurately check the fuse’s condition.
Can I Replace An Ac Fuse Myself?
Yes, you can replace an AC fuse yourself if you’re comfortable with electrical tasks. Ensure the power is off before replacing it. Use a fuse of the same rating for replacement. If unsure, consult a professional to avoid any safety hazards or further damage.
Conclusion
Checking your air conditioner fuse helps keep your unit running well. It is a simple task that anyone can do with care. Always turn off power before you start. Use the steps shared to find and test the fuse. Replace any blown fuses with the right type.
This small check can save you time and money. Stay safe and keep your air conditioner cool all summer. Regular fuse checks help avoid big problems later. Keep this guide handy for quick fuse checks anytime.
