If you’re working on your air conditioner, knowing how to safely discharge the capacitor is crucial. That small part holds a lot of electrical charge, and touching it without proper steps can be dangerous.
But don’t worry—this guide will show you simple, clear steps to discharge your AC capacitor quickly and safely. By the end, you’ll feel confident handling this task and avoid costly repairs or injuries. Keep reading to protect yourself and get your AC running smoothly again.

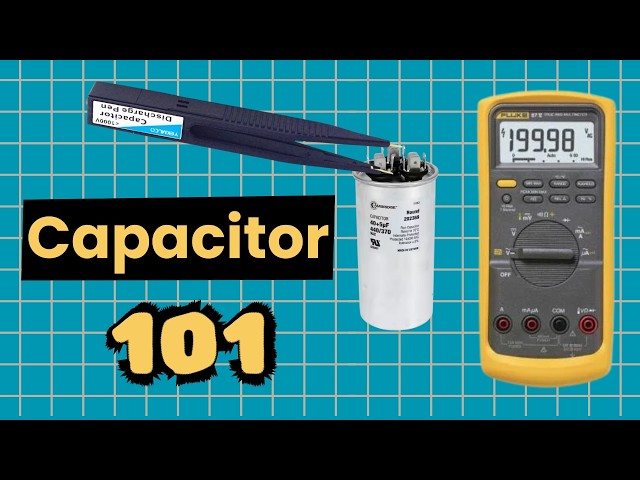

Credit: www.youtube.com
Safety Precautions
Discharging an air conditioner capacitor requires care. Safety is important to avoid injury or damage.
Follow these safety tips before you start working on the capacitor.
Turn Off Power Supply
Always switch off the main power to the air conditioner. This stops electricity flow and lowers the risk of shock.
Check the circuit breaker or unplug the unit. Make sure no power reaches the capacitor before handling it.
Wear Protective Gear
Wear safety gear to protect yourself from electric shock and injury. Use items like gloves and safety glasses.
- Rubber-insulated gloves to block electric current
- Safety glasses to protect eyes from sparks
- Long-sleeve clothing to cover your skin
- Closed-toe shoes to avoid foot injury
Use Insulated Tools
Use tools with insulated handles to safely discharge the capacitor. This prevents electric current from passing through the tool.
| Tool | Purpose | Insulation Feature |
|---|---|---|
| Screwdriver | Short circuit capacitor terminals | Rubber or plastic handle |
| Multimeter | Check capacitor charge level | Insulated probes |
| Capacitor Discharge Tool | Safely drain stored energy | Built-in resistor and insulated grip |
Credit: www.reddit.com
Identify The Capacitor
Knowing how to find and recognize the capacitor is important before you discharge it. The capacitor stores electrical energy and helps start the air conditioner motor.
This guide will help you locate the capacitor unit, read its labels, and understand the common types of capacitors.
Locate The Capacitor Unit
The capacitor is usually inside the outdoor unit of your air conditioner. It looks like a small metal cylinder or oval-shaped box. You need to open the access panel to see it.
- Turn off power before opening the unit.
- Find the metal or plastic box near the compressor or fan motor.
- Look for wires connected to this box.
Check Capacitor Labels
Labels on the capacitor show important information. You can use these details to confirm you have the right part and know how to handle it safely.
| Label | Meaning |
| Microfarads (µF) | Capacity rating of the capacitor |
| Voltage (V) | Maximum voltage the capacitor can handle |
| Model Number | Manufacturer’s part number |
| Date Code | Manufacturing date |
Types Of Capacitors
There are three common types of capacitors in air conditioners. Each has a different role in the system.
- Start Capacitor:Helps the motor start by giving a quick boost.
- Run Capacitor:Keeps the motor running smoothly after it starts.
- Dual Capacitor:Combines start and run capacitors in one unit.
Tools Needed
Discharging an air conditioner capacitor requires certain tools. Using the right tools helps you work safely and correctly.
Here are the main tools you need before starting the process. Each tool has a specific role in ensuring safety and accuracy.
Multimeter
A multimeter measures electrical charge and verifies if the capacitor is fully discharged. It helps you check voltage safely.
Choose a multimeter that can read volts and microfarads. Always test the multimeter on a known live circuit before use.
Insulated Screwdriver
An insulated screwdriver is essential for safely discharging the capacitor. It prevents electric shock by protecting you from live current.
- Use a screwdriver with a thick insulated handle.
- Check that the insulation is not damaged.
- Do not use metal tools without insulation.
Gloves And Safety Glasses
| Safety Gear | Purpose |
|---|---|
| Gloves | Protect your hands from electric shocks and sharp edges. |
| Safety Glasses | Shield your eyes from sparks or debris during discharge. |
Credit: www.youtube.com
Discharging Process
Discharging an air conditioner capacitor is important for safety before handling it. The capacitor stores electrical energy that can cause shocks.
This guide explains how to safely discharge the capacitor with clear steps to follow.
Confirm Power Is Off
Before starting, make sure the air conditioner is unplugged or the circuit breaker is off. This stops electricity from flowing to the capacitor.
Use a voltage tester on the capacitor terminals to confirm there is no power. Never touch the capacitor if power is still present.
Short The Terminals Safely
Shorting the terminals releases stored energy quickly but must be done carefully. Use an insulated screwdriver with a handle that covers the metal part.
- Hold the screwdriver handle firmly.
- Touch the metal blade across both terminals at the same time.
- Keep contact for a few seconds to discharge fully.
- Remove the screwdriver carefully after discharging.
Use A Resistor For Controlled Discharge
Using a resistor is a safer way to discharge the capacitor slowly and avoid sparks.
| Resistor Value | Power Rating | Purpose |
| 10,000 ohms | 5 watts | Controls discharge speed |
| 20,000 ohms | 5 watts | Reduces current safely |
Connect the resistor across the terminals using insulated clips. Leave it connected for a few minutes to fully discharge the capacitor.
Testing The Capacitor
Testing an air conditioner capacitor ensures it works properly. A bad capacitor can cause your AC to fail.
Before testing, you must safely discharge the capacitor. This prevents electric shock and damage to your meter.
Set Multimeter To Capacitance Mode
Turn your multimeter on and select the capacitance mode. This mode measures the capacitor’s ability to store charge.
Connect the meter leads to the capacitor terminals. The meter shows the capacitance value in microfarads (µF).
- Disconnect power before testing
- Set the multimeter dial to “Cap” or capacitance
- Touch the meter probes to capacitor terminals
- Read the displayed capacitance value
Check Voltage Drop
After discharging, check if the voltage drops to zero. This confirms the capacitor is safe to handle.
Use a voltmeter or multimeter set to voltage mode. Place probes on the capacitor terminals and watch the reading.
- Set meter to DC voltage
- Touch probes to capacitor terminals
- Watch for voltage reading
- Voltage should drop quickly to zero
Verify Full Discharge
Ensure the capacitor is fully discharged before testing capacitance. Partial charge can give wrong readings.
Repeat the voltage check. If the meter reads zero volts, the capacitor is fully discharged and safe to test.
- Discharge capacitor using a resistor or screwdriver with insulated handle
- Check voltage after discharge
- If voltage is zero, capacitor is safe
- If not, discharge again and recheck
Common Mistakes To Avoid
Discharging an air conditioner capacitor is a task that requires care. Many people make simple mistakes that can cause injury or damage. Knowing what to avoid will keep you safe and protect your equipment.
Read the following sections to learn about common errors. Avoid these to do the job correctly and safely.
Ignoring Power Cut
Always turn off the power before discharging the capacitor. Ignoring this step can cause electric shock. The capacitor can still hold a charge even if the unit is off. Make sure the air conditioner is unplugged or the circuit breaker is switched off.
Using Metal Tools Without Insulation
Using metal tools without insulated handles is dangerous. The metal can conduct electricity and cause shocks. Use tools with rubber or plastic handles. This protects you from electric current during discharge.
- Choose insulated screwdrivers or pliers
- Avoid bare metal tools
- Check tool insulation before use
- Wear rubber gloves for extra safety
Rushing The Discharge
Do not rush to discharge the capacitor. It can take time to safely release stored energy. Rushing increases the risk of sparks and shocks. Take your time and follow proper steps.
| Risk | Cause | How to Avoid |
| Sparks | Quick discharge without care | Discharge slowly using correct tools |
| Electric shock | Touching terminals too soon | Wait and verify capacitor is fully discharged |
| Damage to capacitor | Improper discharge method | Follow manufacturer instructions carefully |
When To Replace The Capacitor
Air conditioner capacitors are key parts that help your AC start and run. Knowing when to replace the capacitor saves your AC from damage.
Look for signs that show the capacitor is weak or broken. This guide explains when you need a new capacitor.
Signs Of Damage
Physical damage is a clear sign the capacitor needs replacement. Check for:
- Bulging or swelling on the capacitor body
- Leaking fluid or oily residue
- Burn marks or discoloration
- Cracks or dents on the casing
Capacitance Below Specification
Capacitance measures how much electrical charge the capacitor holds. If this value drops, the AC won’t work well.
| Capacitor Rating | Acceptable Range | Action Needed |
|---|---|---|
| 35 µF | 33 – 37 µF | Keep monitoring |
| 35 µF | Below 33 µF | Replace capacitor |
| 50 µF | 47 – 53 µF | Keep monitoring |
| 50 µF | Below 47 µF | Replace capacitor |
Frequent Ac Issues
If your AC has many problems, the capacitor may be weak or failing. Watch for these issues:
- AC does not start or takes longer to start
- Fan or compressor runs slowly
- AC turns off unexpectedly
- Unusual noises from the unit
- Higher electricity bills
Frequently Asked Questions
How Do You Safely Discharge An Ac Capacitor?
To safely discharge an AC capacitor, first turn off the power. Use an insulated screwdriver across the capacitor terminals to release stored energy. Wear protective gloves and ensure no metal contacts your body during the process to avoid electric shock.
Why Is Discharging An Air Conditioner Capacitor Important?
Discharging an AC capacitor is crucial to prevent electric shocks. Capacitors store high voltage even after power is off. Safely discharging protects you and the equipment during repairs or replacements.
What Tools Are Needed To Discharge An Ac Capacitor?
You need an insulated screwdriver, gloves, and a multimeter. The screwdriver discharges the capacitor, gloves protect you, and the multimeter verifies no charge remains.
Can I Discharge An Ac Capacitor Without Professional Help?
Yes, with proper safety measures and tools, you can discharge it yourself. Always turn off power, use insulated tools, and verify voltage is zero before handling the capacitor.
Conclusion
Discharging an air conditioner capacitor keeps you safe during repairs. Always turn off power before starting any work. Use a screwdriver with an insulated handle to discharge the capacitor. Take your time and follow each step carefully. Avoid touching metal parts directly to prevent shocks.
Proper discharge helps avoid damage to the AC unit. Stay cautious and double-check before handling the capacitor. This simple step makes repairs safer and easier. Keep safety first to protect yourself and your air conditioner.
