Is your air conditioner clutch making strange noises or not working properly? You might be wondering how to remove it safely and efficiently without causing more damage.
Removing the air conditioner clutch can seem tricky, but with the right steps, you can do it yourself and save time and money. In this guide, you’ll find simple, clear instructions that anyone can follow. Keep reading to learn exactly what tools you need and how to get the job done right the first time.
Your air conditioner will thank you!
Tools Needed
Removing an air conditioner clutch requires some specific tools. Using the right tools makes the job easier and safer.
Here are the basic tools you will need to remove an air conditioner clutch from your vehicle.
Socket Wrench Set
A socket wrench set helps you remove bolts and nuts holding the clutch in place. Different sizes may be needed.
- Choose a set with both metric and standard sizes
- Use ratchets for faster loosening
- Extension bars can help reach tight spots
Clutch Puller Tool
This tool is used to safely pull the clutch off the compressor shaft. It prevents damage to the clutch and compressor.
Make sure the puller fits your clutch model. Some pullers come with adjustable arms.
Screwdrivers
Flathead and Phillips screwdrivers help remove covers or clips around the clutch area. They also help pry small parts gently.
- Use a flathead to pry off snap rings
- Use Phillips for screws on protective covers
- Choose screwdrivers with comfortable grips
Snap Ring Pliers
Snap ring pliers are needed to remove snap rings that hold the clutch in place. They make the process safer and easier.
Use the correct size pliers to avoid bending or breaking the rings.
Work Gloves
Wear work gloves to protect your hands from sharp edges and hot parts. Gloves also improve your grip on tools and parts.
- Choose gloves with good flexibility
- Make sure gloves fit well
- Use gloves that resist oils and dirt
Safety Glasses
Safety glasses protect your eyes from flying debris and dust during clutch removal. Always wear them to prevent injury.
Pick glasses that fit comfortably and have clear lenses for better visibility.
Safety Precautions
Removing an air conditioner clutch requires care and attention. Safety must come first to avoid injury and damage.
This guide covers the key safety steps to follow before and during the removal process.
Wear Protective Gear
Always wear safety goggles and gloves to protect your eyes and hands. The clutch and surrounding parts can be sharp or hot.
Disconnect The Battery
Disconnect the vehicle battery before starting work. This step prevents accidental electrical shocks and short circuits.
Use Proper Tools
- Use the correct wrenches and pullers made for air conditioner clutches.
- Avoid using makeshift tools that may slip or break.
- Check tools for damage before use.
Work In A Well-ventilated Area
Perform the removal outside or in a garage with good airflow. This helps avoid inhaling any harmful fumes or dust.
Secure The Vehicle
| Precaution | Reason |
| Engage Parking Brake | Prevents vehicle from moving |
| Use Wheel Chocks | Keeps wheels stable on inclined surfaces |
| Lift Vehicle Safely | Use jack stands to avoid collapse |
Locate The Ac Clutch
The AC clutch is an important part of your car’s air conditioning system. It helps control when the AC compressor turns on and off.
Knowing where the AC clutch is will help you remove it safely and correctly.
Find The Ac Compressor
The AC clutch is attached to the AC compressor. First, locate the compressor in the engine bay. It is usually near the front of the engine.
The compressor looks like a metal cylinder with hoses connected to it. It is driven by the engine belt.
Identify The Ac Clutch Assembly
The AC clutch is a round, flat part mounted on the front of the AC compressor. It spins only when the AC is on.
You can see the clutch pulley and the clutch coil. The pulley is connected to the engine belt, and the coil controls the clutch engagement.
Check The Wiring And Connectors
The AC clutch has electrical wires attached to it. These wires power the clutch coil to turn it on or off.
Look for the electrical connector on the clutch. You may need to unplug it before removing the clutch.
- Locate the AC compressor near the engine front
- Spot the round clutch on the compressor front
- Find the electrical connector attached to the clutch

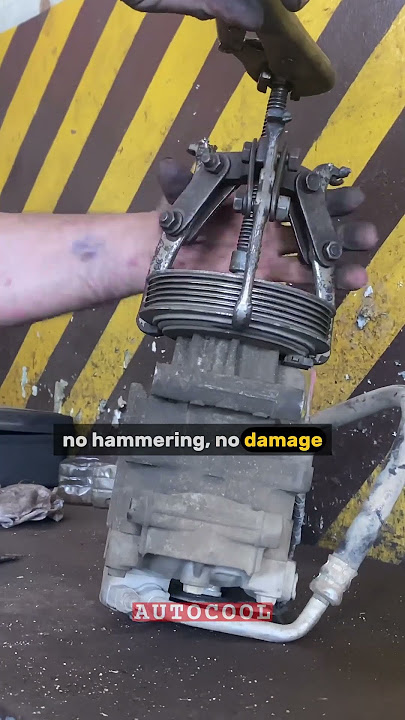

Credit: www.youtube.com
Remove The Drive Belt
Removing the drive belt is a key step to take off the air conditioner clutch. This process stops the belt from spinning and allows safe removal of the clutch.
Before you start, make sure the engine is off and cool. This prevents injury and makes the work easier.
Locate The Drive Belt
Find the drive belt on the front of the engine. It loops around several pulleys, including the air conditioner clutch pulley.
Release Belt Tension
Use a wrench or a belt tensioner tool to move the tensioner pulley. This action loosens the belt, making it easier to remove.
- Locate the belt tensioner pulley.
- Insert the correct tool on the tensioner bolt.
- Pull or push the tool to release tension.
- Hold the tensioner while sliding the belt off the clutch pulley.
Remove The Belt From The Pulley
Carefully slide the belt off the air conditioner clutch pulley. Avoid twisting or bending the belt too much to prevent damage.
| Tool | Purpose |
|---|---|
| Wrench | Turn the belt tensioner bolt |
| Belt Tensioner Tool | Release belt tension safely |
| Gloves | Protect your hands during removal |
Disconnect Electrical Connectors
Disconnecting the electrical connectors is a key step in removing an air conditioner clutch. It ensures safety and prevents damage to electrical components.
Always turn off the vehicle and disconnect the battery before starting. This stops any current flow and reduces the risk of shocks or shorts.
Locate The Electrical Connectors
Find the connectors attached to the air conditioner clutch coil. These are usually near the compressor and have wires leading to the vehicle’s wiring harness.
Remove The Connectors Safely
Follow these steps to disconnect the electrical connectors without damage:
- Press the release tab on the connector to unlock it.
- Gently pull the connector straight out; do not twist or yank.
- Inspect the connectors for dirt or corrosion and clean if necessary.
- Secure the disconnected wires away from moving parts.
Check Connector Condition
Check the condition of the connectors to avoid future problems. Look for cracks, worn wires, or corrosion that may cause poor electrical contact.
| Connector Part | What to Check | Action if Damaged |
|---|---|---|
| Plastic Housing | Cracks or breaks | Replace connector |
| Metal Pins | Corrosion or bending | Clean or replace pins |
| Wiring | Fraying or cuts | Repair or replace wiring |
Credit: www.youtube.com
Loosen The Clutch Bolt
Removing the air conditioner clutch starts with loosening the clutch bolt. This bolt holds the clutch tightly on the compressor shaft. You must loosen it carefully to avoid damage.
Using the right tools and steps helps you remove the bolt safely. Follow the guide below to loosen the clutch bolt correctly.
Gather The Necessary Tools
You need some basic tools to loosen the clutch bolt. The right tools make the process easier and safer. Common tools include a wrench and a clutch holding tool.
- Socket wrench or ratchet
- Clutch holding tool or puller
- Penetrating oil (if bolt is stuck)
- Safety gloves and glasses
Secure The Clutch To Prevent Rotation
The clutch bolt is tight and may turn with the clutch. Use a clutch holding tool to stop the clutch from spinning. This tool holds the clutch in place while you loosen the bolt.
If you do not have a holding tool, you can try to hold the clutch carefully by hand or use a strap wrench. Be careful not to damage the clutch.
Apply Penetrating Oil If Needed
Sometimes the clutch bolt is rusty or stuck. Spray a small amount of penetrating oil on the bolt. Let it sit for a few minutes to loosen the bolt.
This step helps reduce the force needed to loosen the bolt. It also prevents damage to the bolt and surrounding parts.
Use The Correct Wrench To Loosen The Bolt
Fit the socket wrench securely on the clutch bolt. Turn the wrench counterclockwise to loosen the bolt. Use steady and controlled force.
If the bolt is very tight, do not use excessive force. Instead, apply more penetrating oil and wait before trying again.
Remove The Clutch Bolt Completely
Once the bolt loosens, keep turning until it comes off completely. Keep the bolt safe for reassembly later.
After removing the bolt, you can carefully slide off the clutch from the compressor shaft.
Remove The Clutch Assembly
Removing the air conditioner clutch assembly requires care and the right tools. This guide explains how to do it safely.
Follow the steps carefully to avoid damage to the AC system or other parts of your vehicle.
Prepare The Workspace
Park your vehicle on a flat surface and turn off the engine. Disconnect the battery to prevent electrical shocks.
Remove The Serpentine Belt
Use a wrench to release the tension on the belt tensioner. Slide the serpentine belt off the AC clutch pulley carefully.
Detach The Clutch Plate
Use a clutch removal tool to hold the clutch plate steady. Remove the center bolt with a socket wrench.
- Hold the clutch plate firmly with the removal tool
- Turn the center bolt counterclockwise to loosen
- Remove the bolt and set it aside safely
Remove The Magnetic Coil
After removing the clutch plate, unscrew the bolts holding the magnetic coil. Pull the coil off carefully to avoid wire damage.
Inspect And Store Parts
Check all parts for wear or damage. Clean and store the clutch assembly components in a safe place for reinstallation or replacement.
| Part | Action |
| Clutch Plate | Remove and inspect for wear |
| Center Bolt | Keep safely for reuse |
| Magnetic Coil | Unscrew and check wiring |
| Serpentine Belt | Remove and check tension |
Credit: www.planetisuzoo.com
Inspect The Clutch Components
Checking the air conditioner clutch parts is important before removal. It helps find any damage or wear. This makes the repair process smoother.
Look closely at each component. This ensures the clutch works well after reassembly or replacement.
Examine The Clutch Plate
The clutch plate connects to the pulley and compressor. Check for cracks, burns, or warping. A damaged plate can cause slipping or noise.
Check The Clutch Coil
The coil creates the magnetic field to engage the clutch. Inspect the coil for burns or broken wires. Measure its resistance with a multimeter for proper function.
Inspect The Air Gap
The air gap is the space between the clutch plate and pulley. It affects clutch engagement. Use a feeler gauge to measure the gap. Adjust if it is out of specification.
- Too small gap causes clutch drag
- Too large gap prevents engagement
- Standard gap usually ranges between 0.2 to 0.5 mm
Look At The Bearing
The bearing lets the pulley spin freely. Check for noise, roughness, or play when you turn it by hand. Replace if the bearing shows signs of failure.
Review The Fasteners And Bolts
Fasteners hold the clutch parts together. Check for rust, stripping, or looseness. Tighten or replace bolts as needed to avoid problems during reassembly.
| Component | What to Check | Possible Issue |
| Clutch Plate | Cracks, warping, burns | Slipping, noise, poor engagement |
| Clutch Coil | Burns, wire breaks, resistance | No magnetic field, clutch won’t engage |
| Air Gap | Measurement accuracy | Clutch drag or failure to engage |
| Bearing | Noise, roughness, play | Noise, pulley seizure |
| Bolts and Fasteners | Rust, tightness, stripping | Loose parts, damage during operation |
Reinstall Or Replace The Clutch
After removing the air conditioner clutch, you must decide whether to reinstall it or replace it. Proper handling ensures your AC system works well and lasts longer.
This guide will help you understand how to reinstall or replace the clutch safely and correctly.
Inspect The Clutch For Damage
Check the clutch carefully before reinstalling or replacing it. Look for cracks, wear, or signs of overheating. A damaged clutch can cause AC failure or noise.
Clean The Mounting Surface
Make sure the mounting surface is clean and free of dirt or rust. Use a clean cloth and brake cleaner to remove any debris. A clean surface ensures proper clutch installation.
Reinstall The Clutch
To reinstall the clutch, align it carefully on the compressor shaft. Tighten the clutch bolt to the correct torque. Use a torque wrench for accuracy.
- Slide the clutch onto the shaft smoothly
- Make sure the clutch sits flush against the compressor
- Tighten the bolt using the manufacturer’s torque specifications
- Check that the clutch spins freely without wobbling
Replace The Clutch If Needed
If the clutch is damaged or worn out, replace it with a new one. Use a clutch that matches your air conditioner model. Installing the wrong clutch can cause damage.
| Clutch Part | Description | Notes |
| Coil | Electromagnetic part that engages the clutch | Must be tested for resistance before use |
| Pulley | Rotating part that drives the compressor | Check for smooth rotation and no noise |
| Hub | Connects the clutch to the compressor shaft | Replace if worn or damaged |
Test The Clutch Operation
After installation, test the clutch by running the engine and turning on the AC. Listen for unusual noises and check if the clutch engages smoothly.
Safety Tip:Always disconnect the battery before working on the AC clutch to avoid electrical shock.
Test The Air Conditioner
Testing the air conditioner is important before removing the clutch. This helps to identify any problems with the system.
You should check the AC’s performance to make sure the clutch is the cause of any issues.
Check The Ac Cooling
Turn on the air conditioner and set it to the coldest setting. Feel the air coming from the vents to see if it is cold enough.
Listen For Unusual Noises
Pay attention to any strange sounds from the AC compressor or clutch. Grinding or squealing noises can mean the clutch is failing.
Inspect The Clutch Engagement
Watch the clutch while the AC runs. It should engage and spin smoothly. If it does not move or slips, it needs to be removed and repaired.
Measure The Ac System Pressure
Use a pressure gauge to check the high and low pressure sides of the AC system. Proper pressure levels show the system is working well.
- Connect the pressure gauge to the low pressure port.
- Turn on the AC and read the gauge.
- Compare the reading with the manufacturer’s recommended pressure.
- If pressure is too low or high, clutch issues may exist.
Check Electrical Connections
| Connection | What to Check | Result if Faulty |
|---|---|---|
| Clutch Coil Wire | Look for loose or damaged wires | Clutch may not engage |
| Fuse | Check if fuse is blown | Power loss to clutch |
| Relay | Test relay operation | Intermittent clutch function |
Frequently Asked Questions
How Do You Safely Remove An Ac Clutch?
First, disconnect the battery and relieve system pressure. Use a puller tool to remove the clutch without damaging the compressor. Follow safety precautions and wear gloves to avoid injury.
What Tools Are Needed To Remove An Ac Clutch?
You need a clutch puller, socket set, wrench, and screwdrivers. Safety gloves and eye protection are also essential. These tools help remove the clutch efficiently and safely.
Can I Remove An Ac Clutch Without Professional Help?
Yes, if you have basic mechanical skills and proper tools. Follow a step-by-step guide carefully to avoid damage. If unsure, consult a professional for best results.
How Long Does It Take To Remove An Ac Clutch?
Typically, it takes 30 to 60 minutes depending on your experience. Proper preparation and the right tools can speed up the process. Rushing may cause damage or injury.
Conclusion
Removing an air conditioner clutch is straightforward with the right steps. Start by gathering necessary tools. Follow each step carefully. Ensure safety by wearing gloves. Disconnect the battery to avoid shocks. Remove the serpentine belt gently. Loosen the clutch’s bolts and carefully remove it.
Installation requires reversing these steps. Test the air conditioner after reinstallation. Regular maintenance can prevent future issues. Seek professional help if unsure. Your air conditioner will work smoothly with proper care. Enjoy cool air during hot days with ease.
