Wiring an air conditioner disconnect might sound tricky, but it’s a task you can handle with the right guidance. If you want to keep your AC safe and easy to service, knowing how to wire this essential component is a smart skill to have.
In this guide, you’ll discover simple steps that make the process clear and manageable. Whether you’re upgrading your system or fixing a problem, understanding this wiring can save you time, money, and stress. Ready to take control of your AC’s safety and performance?
Let’s dive in and get your disconnect wired the right way.
Tools And Materials Needed
Gathering the right tools and materialsmakes wiring an air conditioner disconnect easier.
- Screwdriver setfor securing wires and disconnect box.
- Wire stripperto remove insulation cleanly from wires.
- Voltage testerto ensure power is off before working.
- Disconnect boxdesigned for air conditioner units.
- Electrical wiresrated for outdoor use and correct gauge.
- Cable clampsto secure wires entering the disconnect box.
- Electrical tapefor extra insulation on wire connections.
- Wire nutsto safely connect wires together.
- Drill with bitsfor mounting the disconnect box on the wall.
Using these tools and materials helps ensure a safe and proper installation.
Safety Precautions
Turn off powerat the main breaker before starting any work. This prevents electrical shocks and accidents. Use a voltage testerto confirm the power is off.
Wear insulated glovesand safety glasses. This protects your hands and eyes from injury.
- Use tools with insulated handles.
- Keep the work area dry to avoid slips and shocks.
- Do not work alone. Have someone nearby in case of emergency.
Follow local electrical codes. Always use the correct wire size and disconnect type. This keeps the installation safe and legal.
Locate The Disconnect Box
The disconnect boxis usually near the air conditioner unit. It is a small metal box mounted on a wall or pole. This box holds the disconnect switchfor safety and service.
Look for a box with a cover that can open easily. It may have a handle or switch inside.
- Check near the outdoor unit or on the house wall.
- It should be close enough to reach the air conditioner.
- Sometimes it is labeled as “disconnect” or “service disconnect.”
Make sure the power is off before opening the box. Use a flashlight if the box is in a dark spot. The disconnect box helps cut powerquickly during repairs.
Turn Off Power Supply
Before starting, turn off the main powerto avoid electric shock. Locate the circuit breakerthat controls your air conditioner and switch it off. Confirm the power is off by using a voltage testeron the wires. Never touch wires without checking power first. Safety is the top priority. Wearing insulated glovescan add protection. If unsure about power status, call a professional electrician to help. Always work in a well-lit area to see clearly.
Remove The Disconnect Cover

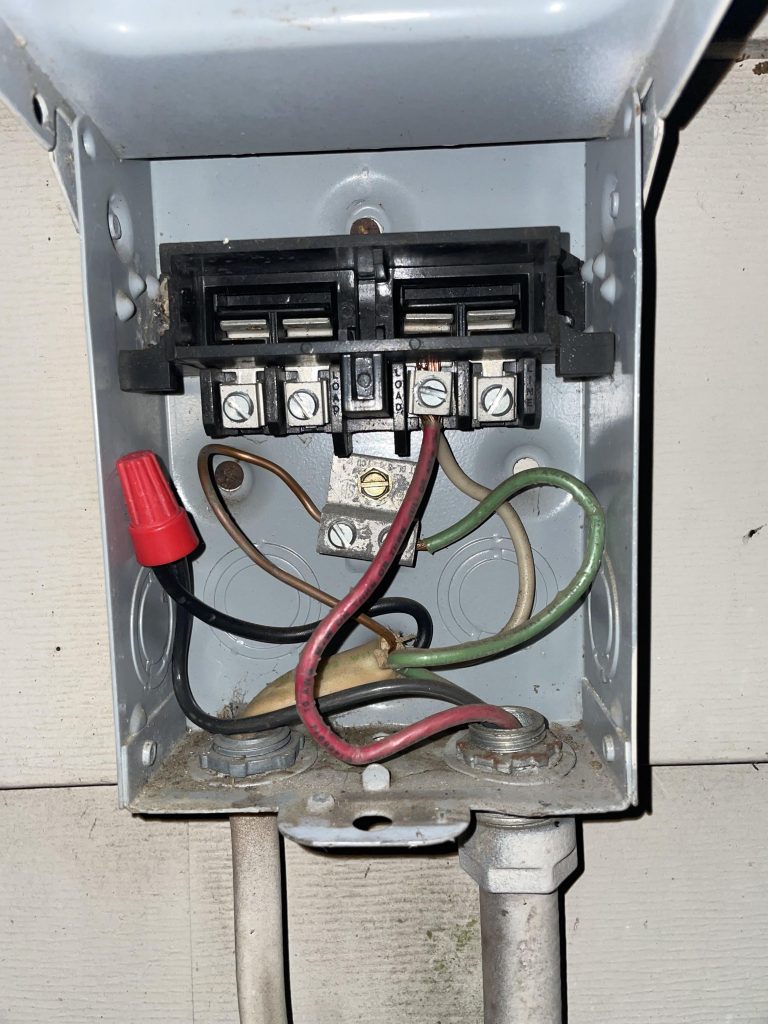

Locate the disconnect box near the air conditioner unit. It usually has a metal or plastic cover.
Use a screwdriver to remove the screws holding the cover in place. Keep the screws safe for later.
Carefully lift the cover off to expose the wiring and switch inside. Avoid touching any wires directly.
Ensure power is off before handling wires. Safety first!
Credit: www.doityourself.com
Identify Wiring Components
The main parts for wiring an air conditioner disconnect include the disconnect box, circuit breaker, and wiring cables. The disconnect box holds the switch to cut power to the unit. It is usually mounted near the air conditioner outside.
The circuit breaker protects the system by stopping electricity during faults. Wiring cables connect the breaker, disconnect box, and air conditioner. These cables carry power safely to the unit.
| Component | Description |
|---|---|
| Disconnect Box | Switch box to turn off power near the AC unit |
| Circuit Breaker | Protects system by stopping electricity in case of problems |
| Wiring Cables | Connect breaker, disconnect box, and air conditioner |
Connect The Wires
First, connect the line wiresto the disconnect. These wires bring power from the main panel. Usually, they are black and red. Make sure the wires are tight and secure in the terminals. Loose connections can cause problems.
Next, attach the load wires. These wires go from the disconnect to the air conditioner. They carry power to the unit. Match the wire colors carefully. Secure them firmly to avoid any hazards.
Finally, secure the ground wire. This wire is usually green or bare copper. It protects against electrical shock. Connect it to the green ground screw or grounding bus bar. This step is important for safety.
Check Wire Connections
Ensure all wire connections are secure and tight. Loose wires can cause power lossor dangerous sparks. Check the copper wiresfor any damage or corrosion. Replace any wires that look frayedor worn out. Use a voltage testerto confirm no power is flowing before touching wires. Make sure the wires are connected to the correct terminals. Double-check the color codingof the wires: black for hot, white for neutral, and green or bare for ground. Tighten all terminal screws firmly but avoid over-tightening to prevent damage. Proper wire connection keeps the air conditioner running safelyand efficiently.
Replace The Disconnect Cover
Secure the disconnect cover tightly to protect the wiring. The cover keeps dust and moisture away from the electrical parts. Use screws or clips to fix the cover firmly. Make sure the cover fits well without gaps. A loose cover can cause safety problems. Check that the cover does not block any wires or switches. After replacing, test the disconnect switch to ensure it works properly. Always keep the area clean and dry around the disconnect box.
Credit: www.reddit.com
Restore Power And Test
Turn the main power switch back on to restore electricity. Check the air conditioner disconnect to ensure all connections are tight and secure. Use a voltage tester to confirm the power is flowing correctly to the unit.
Observe the air conditioner for any unusual sounds or smells as it starts. Make sure the unit turns on smoothly without any sparks or flickering lights. If the unit does not start, double-check all wiring connections and the breaker switch.
- Ensure the disconnect box cover is properly closed after testing.
- Keep a safe distance while turning power back on.
- Use insulated tools during testing to prevent shocks.
- Call a professional if unsure about any step.
Troubleshooting Common Issues
Common issueswith air conditioner disconnect wiring often involve loose connections or corrosion. Tighten all screws and clean terminals to ensure good contact. Check the disconnect switchfor damage or wear. If it feels loose or does not click properly, replacement may be needed.
Use a multimeterto test for power at the disconnect. No power could mean a tripped breaker or blown fuse. Confirm the breaker is onand fuses are intact before proceeding.
- Look for signs of burnt wires or melted insulation.
- Make sure the wire sizes match the air conditioner’s requirements.
- Verify the disconnect is properly grounded to avoid shocks.
Keeping the disconnect clean and dry prevents many problems. Inspect it regularly during AC maintenance. Small fixes here save big headaches later.
Credit: www.diychatroom.com
Frequently Asked Questions
How Do I Safely Wire An Ac Disconnect?
To safely wire an AC disconnect, first, turn off the main power supply. Use proper tools and protective gear. Follow the manufacturer’s wiring diagram. Connect the ground, neutral, and hot wires securely. Double-check connections before restoring power. Always consult a professional if unsure.
What Tools Are Needed For Wiring An Ac Disconnect?
You need a screwdriver, wire stripper, and multimeter for wiring. Safety gloves and goggles are essential. A voltage tester ensures power is off. Having the right tools ensures a safe and efficient wiring process. Always refer to the manufacturer’s instructions for specific tools.
Can I Wire An Ac Disconnect Myself?
Yes, if you’re experienced and confident in electrical work. Follow safety protocols and local codes. However, hiring a licensed electrician is recommended for safety. Incorrect wiring can lead to electrical hazards. Always prioritize safety over cost savings when working with electricity.
Why Is An Ac Disconnect Necessary?
An AC disconnect provides a safe way to cut power for maintenance. It’s a safety feature required by electrical codes. It ensures the air conditioner can be serviced without risk. Having a disconnect switch enhances safety for both homeowners and technicians.
Conclusion
Wiring an air conditioner disconnect can be simple with the right steps. Always turn off power before starting work. Use proper tools and follow safety rules closely. Double-check all connections to avoid problems later. Taking time helps prevent costly mistakes.
Now, you have the basic knowledge to handle wiring safely. Keep this guide handy for future use. Stay careful and your air conditioner will work well.
