Have you ever wondered where the evaporator coils are located in your air conditioner? Knowing this simple fact can make a big difference when it comes to keeping your AC running smoothly and efficiently.
If your home isn’t cooling like it should, or your energy bills are climbing, understanding the role and location of these coils could be the key to solving the problem. You’ll discover exactly where the evaporator coils are, why they matter, and how this knowledge can help you maintain your air conditioner better than ever before.
Keep reading to unlock the secrets behind your AC’s cooling power.
Evaporator Coil Location Basics

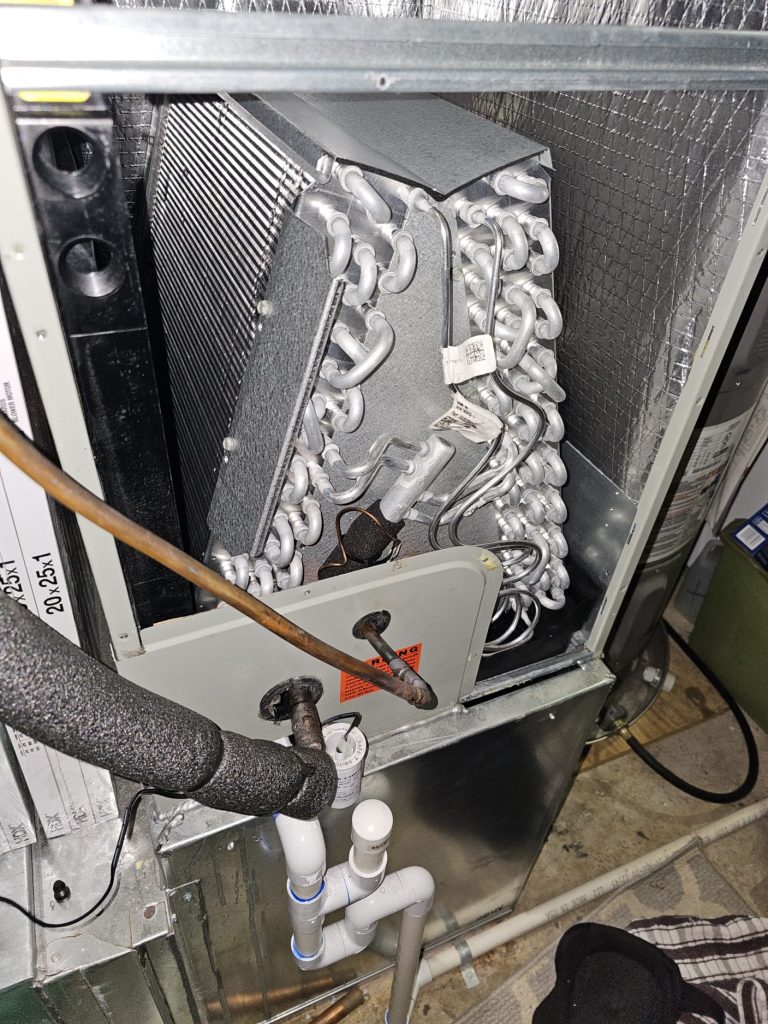

The evaporator coilcools the air inside your home. It is usually found inside the air handler, which is the part that moves air through the system. This coil absorbs heat from the air, helping to cool it down.
In many homes, the coil is located near the furnace. This setup lets the cool air mix with warm air from the furnace before moving through the ducts. It saves space and works well in split system units.
In split system units, the coil sits inside the indoor unit. The other part, the condenser, is outside. The coil plays a key role in the cooling process, working with the outdoor unit to keep your home comfortable.
Credit: medium.com
Types Of Evaporator Coils
A-Coil Designis the most common type of evaporator coil. It looks like the letter “A” and fits well in many air conditioners. This coil uses copper tubes and aluminum fins to cool the air quickly.
Slab Coil Designis flat and wide. It works best in tight spaces. The slab design helps air flow evenly and keeps the system quiet. It is easy to clean and maintain.
Plate Coil Designuses thin metal plates instead of tubes. It is very compact and lightweight. This design cools air fast and saves space in the air conditioner.
How To Access Evaporator Coils
Basic tools neededinclude a screwdriver, flashlight, and gloves. A multimeter helps check electrical parts safely.
Safetyis key. Turn off the power before opening the air conditioner. Wear gloves to protect your hands from sharp edges.
- Locate the access panel on the indoor unit.
- Use a screwdriver to remove screws holding the panel.
- Gently pull the panel off to expose the evaporator coils.
- Use a flashlight to clearly see the coils.
- Check for dirt or ice on the coils before cleaning or repair.
- Replace the access panel and secure it with screws after inspection.
- Turn the power back on to resume operation.
Signs Of Evaporator Coil Issues
Reduced cooling efficiencyis a key sign of evaporator coil problems. The air conditioner might blow warm or less cold air. This happens because the coil cannot absorb heat well.
Ice formationon the evaporator coil is another common issue. Ice build-up can block airflow and stop the cooling process. This might happen due to low refrigerant or dirty coils.
Unusual noiseslike hissing or rattling can come from the evaporator coil area. These sounds may indicate refrigerant leaks or loose parts. It’s important to check these noises early to avoid bigger problems.
Maintenance Tips For Evaporator Coils
Regular cleaningkeeps evaporator coils free from dust and dirt. This helps the air conditioner cool better and use less energy. Use a soft brush or vacuum to remove debris gently. Avoid water directly on coils to stop damage.
Checking for leaksis key for coil health. Leaks reduce cooling power and increase energy costs. Look for oily spots or dirt build-up around the coils. Leaks need quick fixing to prevent bigger problems.
Professional inspectiononce a year helps catch hidden issues. Experts check for damage, leaks, and dirt. They also clean coils deeply and test the whole system. This keeps the air conditioner running smoothly and lasts longer.
Credit: www.logan-inc.com
Common Evaporator Coil Problems
Clogged coilsstop air from flowing well. Dirt and dust block the coil’s surface. This makes the air conditioner work hard and cool less. Regular cleaning helps keep coils clear and efficient.
Corrosionhappens when moisture damages the coil’s metal. This causes holes and weak spots. Corroded coils may leak refrigerant or stop cooling properly. Checking coils helps find corrosion early.
Refrigerant leakslower cooling power. Leaks waste refrigerant, the chemical that cools the air. Signs include warm air and ice on coils. Fixing leaks quickly saves energy and prevents damage.
Replacing Or Repairing Evaporator Coils
Repairing evaporator coilsis a good choice for minor leaks or small damages. If the coil is still mostly intact and the damage is easy to fix, repair saves money and time. Cleaning the coils can also improve performance without full replacement.
Replacing evaporator coilsis best if the damage is severe or the coil is old. Large leaks or corrosion mean repairs won’t last. New coils make the air conditioner work better and last longer.
| Cost Aspect | Details |
|---|---|
| Repair Cost | Usually lower, depends on damage size |
| Replacement Cost | Higher, but improves efficiency and lifespan |
| Labor Cost | Similar for repair and replacement |
Credit: blog.totalhomesupply.com
Frequently Asked Questions
Where Are Evaporator Coils Located In An Air Conditioner?
Evaporator coils are inside the indoor air handler or furnace. They absorb heat from indoor air, cooling it. Typically, they’re found near the blower fan and air filter for efficient heat exchange.
How Can I Find Evaporator Coils In My Ac Unit?
Check inside the air handler or furnace cabinet. Open the access panel carefully to spot shiny metal tubes with fins. Ensure power is off before inspecting to avoid electrical hazards.
Why Is The Evaporator Coil Important In Cooling?
The evaporator coil absorbs heat from indoor air, enabling the refrigerant to cool the air. This process is crucial for effective air conditioning and maintaining comfortable indoor temperatures.
Can Dirty Evaporator Coils Affect Ac Performance?
Yes, dirty coils reduce heat absorption, causing inefficient cooling and higher energy use. Regular cleaning ensures optimal airflow and improves AC efficiency and lifespan.
Conclusion
Understanding the location of evaporator coils is crucial. It helps in proper air conditioner maintenance. Typically, these coils are inside the indoor unit. Near the air handler or furnace. Easy access ensures efficient cleaning and checks. Regular maintenance keeps your air conditioner running smoothly.
Prevents costly repairs. Enhances cooling efficiency. Saves energy and money. Always consult a professional for complex issues. Proper care extends the lifespan of your unit. Ensures a comfortable home environment. Stay informed. Keep your air conditioner in top shape. Enjoy a cool and pleasant atmosphere.
