Have you ever wondered where the air conditioner coils are hidden inside your unit? Knowing their exact location can help you understand how your AC cools your home and why regular maintenance is so important.
If you want to keep your system running smoothly and avoid costly repairs, it’s crucial to know what these coils do and where to find them. Keep reading, and you’ll discover everything you need to know about your air conditioner coils—and how this simple knowledge can save you time and money.
Credit: blog.totalhomesupply.com
Types Of Air Conditioner Coils
Air conditioners use coils to cool your home. These coils help move heat and keep the air cold.
There are two main types of coils in an air conditioner. Each type has a special job.

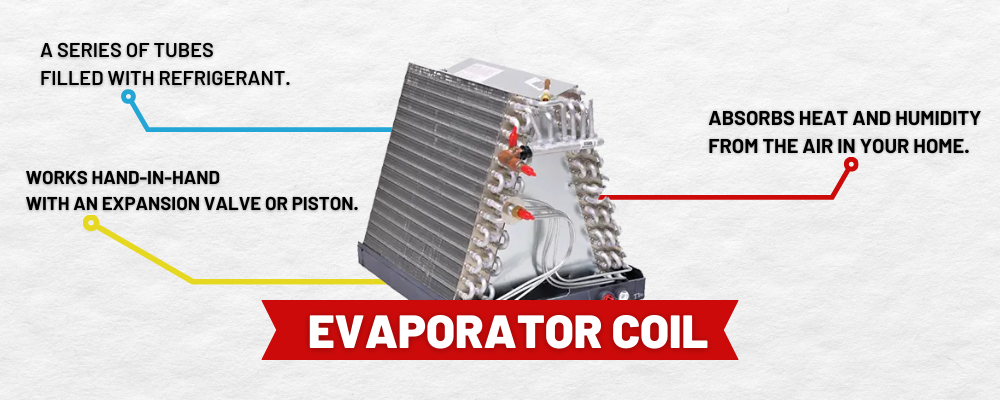

Evaporator Coils
Evaporator coils are inside your home. They absorb heat from the air in your rooms.
These coils use refrigerant to turn warm air into cool air. The air feels cooler when it passes over the coils.
- Located in the indoor air handler or furnace
- Absorbs heat from indoor air
- Uses refrigerant to cool the air
- Helps lower indoor temperature
Condenser Coils
Condenser coils are outside your home. They release the heat that the evaporator coils absorb.
These coils work with a fan to push heat away from your house. They help keep your air conditioner running well.
- Located in the outdoor unit
- Releases heat from refrigerant to outside air
- Works with a fan to cool the coils
- Keeps the system efficient
Locating Evaporator Coils
Evaporator coils are key parts of an air conditioning system. They help cool the air inside your home. Knowing where they are helps with cleaning and maintenance.
This guide shows common places to find evaporator coils. Use it to check your system or explain their location to a technician.
Inside The Air Handler
The evaporator coils are often inside the air handler unit. This unit moves air through your home and contains the cooling parts.
- Look for a large box near your home’s furnace or blower.
- The coils are usually wrapped around the blower fan.
- They look like thin metal tubes with fins.
- These coils absorb heat from the air passing over them.
Near The Furnace Or Blower
Evaporator coils often sit close to the furnace or blower. This helps the system cool air before it moves through your home.
| Location | Description |
| Above the Furnace | Coils may be placed above the furnace in a metal compartment. |
| Beside the Blower | Coils can wrap around the blower fan to cool the air directly. |
| Inside Air Handler Cabinet | Coils are inside the air handler’s metal box, near the airflow path. |
Locating Condenser Coils
Condenser coils are an important part of your air conditioner. They help release heat from your home to the outside air. Knowing where to find them helps with cleaning and maintenance.
This guide explains where the condenser coils are located outside your home. It also shows how to find them near the outdoor unit.
Outside The Home
The condenser coils are outside the house. They are usually in a metal box. This box is part of the outdoor air conditioning unit.
The coils need fresh air to work well. That is why they are placed outside, not inside your home.
Near The Outdoor Unit
The outdoor unit holds the condenser coils. It looks like a large metal box with a fan on top. The coils wrap around the inside of this box.
You can see the coils if you look through the metal fins. The fins protect the coils and help air flow. Cleaning these fins keeps the coils working well.
- Find the outdoor unit outside your home
- Look for a metal box with a fan on top
- Check the metal fins around the box
- The coils are inside, wrapped around the unit
Credit: www.logan-inc.com
Tools To Help Find Coils
Air conditioner coils are important parts inside your AC unit. They help cool the air by moving heat. Finding these coils can be tricky without the right tools.
This guide explains simple tools you can use to locate the coils. These tools make it easier to see and access the coils safely.
Flashlight
A flashlight helps you see inside dark areas of the AC unit. Coils are often hidden in tight spaces with low light.
Use a bright flashlight to check behind panels and inside vents. This tool helps spot the coils and any dirt or damage on them.
Screwdrivers
Screwdrivers are needed to remove screws on the AC unit. Coils are usually behind covers that are screwed in place.
Use the right type of screwdriver to avoid stripping screws. This tool lets you open panels safely to reach the coils.
Access Panels
Access panels are removable covers on your AC unit. These panels hide the coils and other parts inside.
Look for these panels on the sides or front of the unit. Removing them gives you direct view and access to the coils for inspection or cleaning.
Signs Of Coil Problems
Air conditioner coils help cool your home. They move heat from inside to outside. If coils have issues, your AC may not work well.
Knowing the signs of coil problems can save you from bigger repairs. Watch for changes in cooling and unusual ice on coils.
Reduced Cooling Efficiency
When coils are dirty or damaged, your AC cools less. You might feel less cold air from vents. Your home stays warm longer.
Dirty coils block heat transfer. This forces the AC to work harder. Your electricity bill may go up because of this.
- Longer cooling times
- Warm air from vents
- Higher energy use
- Frequent AC running
Ice Formation On Coils
Ice can build on coils if airflow is low or refrigerant is low. Ice blocks heat exchange, making cooling worse.
Ice on coils looks like frost or frozen water. It can damage the coil and reduce AC performance.
- Frost or ice on coils
- Reduced cooling power
- AC shuts off unexpectedly
- Unusual noises from unit
Tips For Coil Maintenance
Air conditioner coils need care to work well. Dirty or damaged coils reduce cooling and raise bills.
Regular care helps your AC last longer and keep your home cool.
Regular Cleaning
Cleaning coils removes dirt and dust. This keeps air flowing and stops damage.
- Turn off the power before cleaning.
- Use a soft brush to clear dust gently.
- Spray coils with a coil cleaner or mild detergent.
- Rinse with water carefully without soaking other parts.
- Let coils dry fully before turning the AC back on.
Professional Inspections
Experts check coils for hidden damage and clean hard-to-reach areas.
| Inspection Item | What It Checks |
| Coil Condition | Look for corrosion or leaks |
| Refrigerant Levels | Ensure proper cooling power |
| Airflow | Check for blockages or damage |
| Electrical Connections | Test safety and efficiency |
Credit: www.aljazeera.com
Frequently Asked Questions
Where Are The Air Conditioner Coils Located?
Air conditioner coils are located in two places: the evaporator coil inside the indoor unit and the condenser coil outside. The evaporator coil cools indoor air, while the condenser coil releases heat outdoors. Both are essential for efficient cooling.
How Can I Identify The Evaporator Coil?
The evaporator coil is inside the air handler or furnace. It looks like a series of thin metal tubes or fins. It absorbs heat from indoor air, cooling it before circulation. Regular cleaning keeps it functioning well.
What Does The Condenser Coil Do?
The condenser coil is outside the home, in the outdoor unit. It releases heat absorbed from inside your home to the outside air. It works with the compressor and fan to complete the cooling cycle.
Why Is Coil Location Important For Ac Performance?
Proper coil placement ensures efficient heat exchange. The evaporator coil inside cools air effectively, while the outdoor condenser coil expels heat. Incorrect coil location can reduce cooling efficiency and increase energy costs.
Conclusion
Understanding air conditioner coils is crucial for maintenance. Coils play a key role in cooling efficiency. Regular cleaning boosts performance and saves energy. Find coils in two main areas. Indoor unit houses the evaporator coil. Outdoor unit contains the condenser coil.
Keep them clean for best results. Dust and debris affect cooling. Routine checks can prevent costly repairs. Proper care extends your air conditioner’s life. Simple steps make a big difference. Always consult a professional for complex issues. Stay cool and comfortable with well-maintained coils.
