Wiring an air conditioner might sound tricky, but with the right guidance, you can do it yourself and save money. Imagine feeling the cool breeze on a hot day, knowing you set it up all by yourself.
This guide will walk you through every step clearly and simply, so you won’t feel lost or overwhelmed. By the end, you’ll have the confidence to wire your air conditioner safely and correctly. Ready to take control of your comfort?
Let’s get started!
Tools And Materials Needed
Essential tools and materialsmake wiring an air conditioner easier and safer. Gather these before starting:
- Wire stripperto remove insulation cleanly
- Screwdriver setfor tightening screws
- Voltage testerto check power presence
- Electrical tapefor insulating wires
- Wire nutsto connect wires securely
- Electrical wiressuitable for air conditioner load
- Circuit breakermatching the AC’s power needs
- Drill and drill bitsfor mounting and cable routing
Having all these ready helps avoid delays and keeps the work safe. Check wire types and sizes carefully. Safety gear like gloves and goggles is also wise.
Safety Precautions
Turn off powerat the breaker before starting any wiring work. This prevents electric shocks.
Use insulated toolsto avoid accidents. Wear rubber-soled shoes to stay safe.
Check the wiring diagramthat comes with your air conditioner. Follow it closely.
- Do not touch wires with wet hands.
- Make sure wires are not frayed or damaged.
- Use wire nuts or connectors to join wires securely.
- Keep wires away from sharp edges or moving parts.
Double-check all connections before turning power back on. Safety first!
Identifying Electrical Components

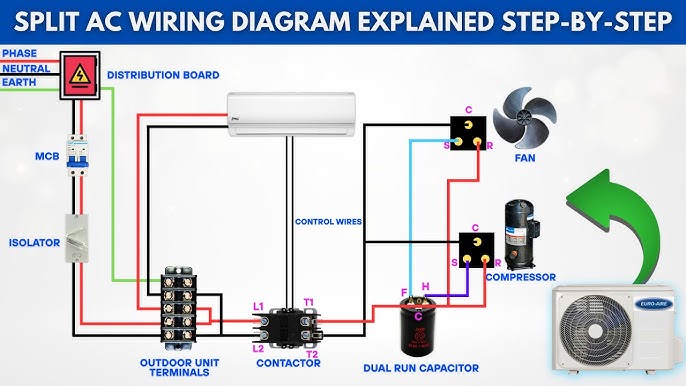

The air conditioner wiring diagramshows how all parts connect. It helps to find wires and parts easily. Study the diagram before starting work.
The power supplyis usually a thick cable. It brings electricity to the unit. Find it near the main switch or breaker box.
- The control boardis the brain of the AC. It controls the functions and settings.
- Compressor wiresconnect the compressor to the control board. They carry power to run the compressor motor.
Credit: www.forsaving.ca
Preparing The Wiring Area
Turn off the powerat the main circuit breaker. This stops any risk of electric shock. Use a voltage tester to be sure the power is off.
Remove the access panelof the air conditioner. This lets you see the wiring inside clearly. Keep screws safe for later.
Check the existing wiringcarefully. Look for any damage or loose wires. Note the wire colors and where they connect.
- Black or red wires are usually hot.
- White wires are neutral.
- Green or bare wires are ground.
Wiring The Air Conditioner
Power wiresconnect the air conditioner to the main electrical supply. Use a circuit breakerthat fits the unit’s power needs. Match wire colors carefully: black or redfor hot wires, whitefor neutral. Secure wires with wire nuts and check connections are tight to avoid sparks.
The ground wireis very important for safety. Attach the green or bare copper wire to the metal frame of the air conditioner. This prevents electric shocks if there is a fault. Make sure the ground wire is connected firmly to the grounding screw or grounding terminal.
Connect control board wires by following the wiring diagram in the manual. These wires control functions like fan speed and compressor operation. Use a small screwdriver to attach wires to the correct terminals. Double-check each connection to avoid errors and ensure the unit runs smoothly.
Credit: apexelectricmechanical.ca
Testing The Connections
Before restoring power, make sure the main power switch is off. Wear insulated gloves to stay safe. Double-check all wiring connections are tight and secure. Loose wires can cause shorts or sparks.
A multimeter helps check voltage safely. Set it to the correct AC voltage range. Touch the probes to the wires or terminals you want to test. The reading should match the air conditioner’s voltage rating.
Testing the air conditioner cycle ensures it runs correctly. Turn the power back on carefully. Listen for unusual noises or vibrations. Check if cool air flows from the vents. Watch the compressor and fan to see if they work smoothly.
Troubleshooting Common Issues
No Power to Unitoften means a wiring or power supply issue. First, check if the unit is properly plugged in and the power switch is on. Inspect the power cord for any damage. Sometimes, the main power source might be off, so verify the circuit breaker or fuse box.
Tripped Circuit Breakercan stop power to the air conditioner. A breaker trips to protect the system from electrical faults or overloads. Reset the breaker by switching it off and then on again. If it trips again quickly, there may be a short circuit or a faulty component needing professional help.
Unresponsive Controlsmay result from loose wiring or a blown fuse inside the control panel. Check all wire connections for tightness. Also, test the control panel fuse with a multimeter. Replace any blown fuses and ensure the control board is receiving power correctly.
Credit: www.youtube.com
Tips For Maintaining Wiring Safety
Always turn off powerbefore starting any wiring work. Use a voltage tester to check wires.
Wear insulated glovesto protect yourself from electric shocks. Avoid working in wet areas.
Use correct wire sizefor your air conditioner. Thin wires can cause fires.
Keep wires neat and organized. Use cable ties and clips to prevent damage.
Check all connections are tight and secure. Loose wires can cause short circuits.
Install a circuit breakerto protect your system from overloads and faults.
- Use wire connectorsto join wires safely.
- Never use damaged or frayed wires.
- Label wires to know their function easily.
Frequently Asked Questions
How Do I Wire An Air Conditioner Safely?
To wire an air conditioner safely, always turn off the power supply first. Use a voltage tester to confirm it’s off. Follow the manufacturer’s wiring diagram, connecting wires according to color codes. Ensure all connections are secure and insulated. Consulting a professional electrician is recommended for safety.
What Tools Are Needed For Air Conditioner Wiring?
Essential tools for wiring an air conditioner include a screwdriver, wire stripper, voltage tester, and pliers. A multimeter is helpful for checking connections. Always ensure tools are insulated to prevent electric shock. Having the right tools ensures a safe and efficient wiring process.
Can I Wire An Ac Unit Myself?
Yes, you can wire an AC unit yourself if you have electrical knowledge. Always follow the manufacturer’s instructions carefully. Ensure the power is off before starting. However, for safety and compliance, consulting a professional electrician is recommended. Incorrect wiring can lead to hazards and damage.
What Wire Size Is Best For Air Conditioners?
The wire size for an air conditioner depends on the unit’s amperage. Typically, a 10-gauge wire is used for units up to 30 amps. For larger units, thicker wires are necessary. Always refer to the manufacturer’s specifications and local electrical codes for accurate wire sizing.
Conclusion
Wiring an air conditioner takes patience and care. Follow each step slowly and double-check your work. Safety comes first—always turn off power before starting. Using the right tools helps avoid mistakes. Clear connections keep your AC running smoothly and safely.
This guide makes the process easier to understand. Stay calm, work carefully, and enjoy cool air soon.
