Have you ever wondered where the evaporator coil in your air conditioner is hidden? Knowing its exact location can save you time and money when your AC isn’t cooling properly.
If you want to understand how your air conditioner works and spot problems early, this is the place to start. Keep reading to discover where your evaporator coil is, why it matters, and how it affects your comfort every day.

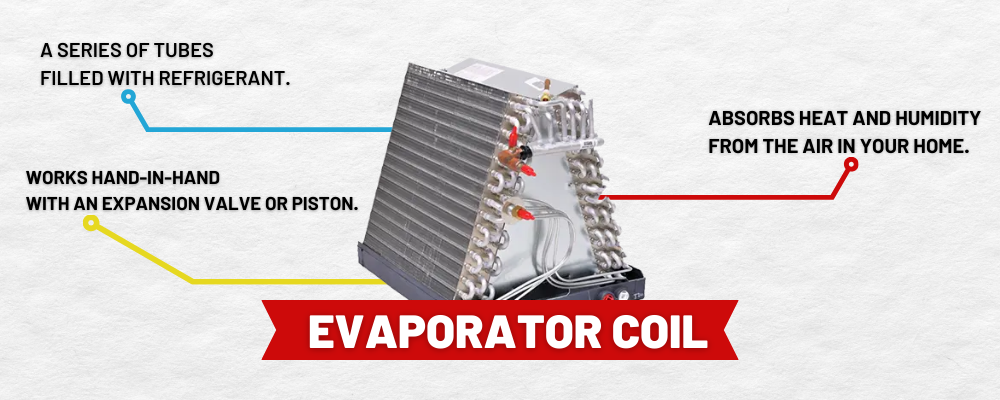

Credit: www.logan-inc.com
Evaporator Coil Basics
The evaporator coil is a key part of an air conditioner. It helps cool the air inside your home. This coil works by absorbing heat from the air.
The coil is usually inside the air handler or attached to the furnace. It works with other parts to keep rooms cool and comfortable.
Role In Cooling System
The evaporator coil cools the warm air that passes through it. It removes heat and humidity from the air. This process helps produce cold air for your home.
- Warm air from your home is blown over the coil.
- The coil contains cold refrigerant that absorbs heat.
- Heat moves from the air to the refrigerant.
- The cooled air is sent back into the rooms.
- The refrigerant carries heat outside to be released.
Common Materials
Evaporator coils are made from materials that transfer heat well. These materials also resist corrosion and last a long time.
| Material | Use | Advantages |
| Copper | Tubing | Good heat transfer, easy to shape |
| Aluminum | Fins | Lightweight, resists corrosion |
| Steel | Frame | Strong and durable |
Credit: blog.totalhomesupply.com
Typical Locations
The evaporator coil is a key part of an air conditioner. It helps cool the air inside your home. The coil is usually hidden from view. Knowing where it is helps with maintenance and repairs.
This guide explains the common places where you can find the evaporator coil. These places depend on the type of air conditioning system you have.
Inside The Air Handler
The evaporator coil is often inside the air handler unit. The air handler moves air through the ducts and into your rooms. The coil cools the air as it passes over it.
- The coil is usually mounted on top or inside the air handler.
- It looks like a set of thin metal fins with tubes.
- Air flows over the coil to remove heat and moisture.
Near The Furnace
In many homes, the evaporator coil sits near the furnace. The furnace heats air in cold months, and the coil cools air in warm months. They work together in the same system.
| Location | Description |
| Above the furnace | Coil is placed on top of the furnace cabinet. |
| Next to the furnace | Coil sits beside the furnace in an air handler box. |
| Inside combined unit | Both coil and furnace are in one housing. |
In Split System Units
Split system air conditioners have parts inside and outside the home. The evaporator coil is inside, while the compressor is outside. This setup keeps the noisy compressor away.
Common places for the evaporator coil in split systems:
- Inside the indoor air handler unit
- Mounted on or near the furnace
- In a dedicated coil cabinet within the home
Identifying The Coil
The evaporator coil is a key part of an air conditioner. It helps cool the air inside your home. Knowing where it is helps with maintenance and repair.
This guide will help you find and recognize the evaporator coil in your air conditioner system.
Visual Characteristics
The evaporator coil looks like a set of thin metal tubes. These tubes are wrapped in fins to increase surface area. The coil is usually made of copper or aluminum.
The coil is often shiny and may be covered with a layer of frost when the air conditioner runs. Dust or dirt can build up on the fins, making them look dull or clogged.
- Thin metal tubes wrapped with thin fins
- Made of copper or aluminum
- Shiny surface that may frost up
- Can appear dusty or dirty over time
Signs Of Location
The evaporator coil is inside the air handler or furnace unit. This is usually indoors, near the blower fan. It is before the air filter in the airflow path.
You might find the coil in the large metal box where air is blown into your home. Look for a panel that can be removed to see the coil inside.
- Located inside the air handler or furnace unit
- Near the blower fan and before the air filter
- Inside a metal box with removable panels
- Usually found indoors in a closet, basement, or attic
Accessing The Coil
The evaporator coil is a key part of an air conditioner. It helps cool the air inside your home. Finding and accessing the coil is important for cleaning and maintenance.
The coil is usually inside the air handler or furnace. You need to open the access panel to reach it safely.
Tools Needed
Before you start, gather the right tools. These will help you open the access panel and inspect the coil.
- Screwdriver (usually Phillips or flathead)
- Flashlight to see inside dark areas
- Gloves to protect your hands
- Soft brush or coil cleaner for cleaning
- Drop cloth to catch debris
Safety Precautions
Work safely when accessing the evaporator coil. Follow these precautions to avoid injury or damage.
- Turn off the power to the air conditioner
- Wear gloves to protect against sharp edges
- Use a flashlight, not your phone light, for better visibility
- Do not touch electrical parts inside the unit
- Keep the area clean and dry to avoid slips
Maintenance Tips
The evaporator coil in your air conditioner helps cool your home. Keeping it clean and safe is important.
Regular care of the coil improves air quality and system efficiency. It also helps prevent costly repairs.
Cleaning The Coil
Dirt and dust can block the evaporator coil. This stops the coil from working well and makes your AC work harder.
Clean the coil at least once a year. You can use a soft brush or a no-rinse coil cleaner for this job.
- Turn off the power to the AC before cleaning
- Remove dust gently with a soft brush
- Spray coil cleaner and let it sit as per instructions
- Allow coil to dry completely before turning on the AC
Preventing Damage
The evaporator coil is delicate and can be damaged by rough handling or debris. Protect it from harm to keep it working long.
Check around the coil for leaks or signs of rust. Fix small problems early to avoid bigger damage.
- Keep the area around the coil clean and dry
- Avoid using sharp tools near the coil
- Schedule regular professional check-ups
- Fix any water leaks to stop rusting
Credit: medium.com
Troubleshooting Issues
The evaporator coil is a key part of your air conditioner. It cools the air inside your home. Knowing where it is helps you find and fix problems.
This guide explains common problems with the evaporator coil. It also tells you when to ask a professional for help.
Common Problems
Evaporator coils can get dirty or freeze. These issues stop the air conditioner from working well. Watch for signs like weak cooling or strange noises.
- Dirt buildup reduces airflow and cooling
- Frozen coils cause uneven cooling
- Leaks in the coil lower efficiency
- Corrosion damages the coil over time
Check your coil regularly. Clean it gently if dirty. Avoid using harsh chemicals that can damage the coil.
When To Call A Professional
Some problems need expert care. If you see ice on the coil, call a technician. Ice can mean low refrigerant or airflow problems.
Also call a pro if you notice leaks or strange smells. Professionals can fix leaks and check refrigerant levels safely.
- Coil frozen solid or frequently icing
- Refrigerant leaks or low refrigerant
- Strange noises from the air handler
- Bad odors coming from vents
- Repeated air conditioning failure
Frequently Asked Questions
Where Is The Evaporator Coil Located In An Ac?
The evaporator coil is inside the indoor air handler or furnace. It absorbs heat from your home’s air, cooling it effectively.
How Can I Find The Evaporator Coil In My Ac Unit?
Check behind the air filter or inside the blower compartment. The evaporator coil looks like a set of metal tubes with fins.
Why Is The Evaporator Coil Important In Air Conditioning?
It absorbs heat from indoor air, enabling the cooling process. Without it, your AC cannot lower the room temperature.
Can A Dirty Evaporator Coil Affect Ac Performance?
Yes, dirt blocks airflow and reduces heat absorption. This causes the AC to work harder and cool less efficiently.
Conclusion
The evaporator coil sits inside the air handler or furnace. It cools the air by absorbing heat from your home. Knowing its location helps with cleaning and maintenance. Clean coils improve your air conditioner’s efficiency. Check your system regularly to keep it working well.
Simple care can prevent costly repairs later. Understanding this part helps you stay comfortable all year. Keep your air conditioner in good shape by watching the evaporator coil. It plays a key role in cooling your space.
