Have you ever wondered where the coil in your air conditioner is located? Knowing this can help you understand how your AC works and why it sometimes needs maintenance.
The coil plays a key role in keeping your home cool and comfortable. You’ll discover exactly where the coil is, why it matters, and how it affects your unit’s performance. Keep reading to unlock the secrets behind your air conditioner’s cooling power.
Types Of Air Conditioner Coils
The evaporator coilis inside the air handler or furnace. It cools the warm air from your home by absorbing heat. As air passes over the coil, the refrigerant inside absorbs the heat, making the air cooler.
The condenser coilis outside, in the outdoor unit. It releases the heat absorbed by the refrigerant to the outside air. The coil works with a fan to move heat away, keeping your home cool.
| Coil Type | Location | Function |
|---|---|---|
| Evaporator Coil | Inside (air handler or furnace) | Absorbs heat from indoor air, cools air |
| Condenser Coil | Outside unit | Releases heat to outdoor air |
Credit: www.logan-inc.com
Location Of The Evaporator Coil

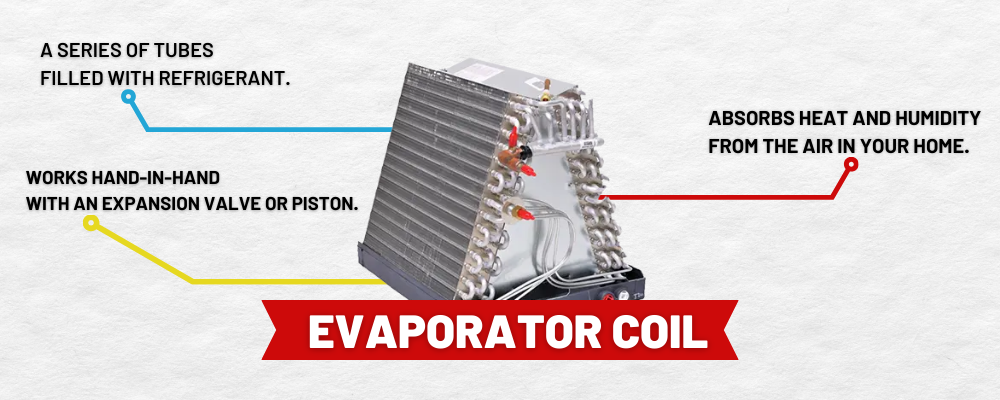

The evaporator coilis found inside the indoor unitof an air conditioner. It sits close to the air handleror the furnace. This location helps the coil cool the air before it moves through the house.
The coil looks like a set of thin metal tubes or fins. Cool refrigerant flows inside these tubes. As air passes over the coil, it loses heat and becomes cooler. This cooled air is then pushed through the ducts to cool rooms.
- Located inside the indoor air handler or furnace
- Contains refrigerant to absorb heat from air
- Helps cool air before it flows into living spaces
- Works with blower fan to move cooled air
Location Of The Condenser Coil
The condenser coilis placed outside the home. It sits within the outdoor unitof the air conditioner. This unit looks like a large metal box with a fan on top.
The coil is usually made of copper or aluminumand is wrapped around the unit’s sides. It works by releasing heat from inside the house to the outside air. The fan helps cool the coil by blowing air over it.
Its location helps the air conditioner work efficiently. It needs good airflow and must stay free from dirt and debris. That is why you often see the unit placed on a concrete pad or a stand in open spaces.
Credit: medium.com
How Coils Affect Air Conditioner Performance
The coilin an air conditioner helps with the heat exchange process. It moves heat from inside the house to outside. The coil cools the air by absorbing heat and releasing it outside. This keeps the room cool and comfortable.
Signs that the coil may have problems include:
- Air conditioner blowing warm air
- Longer cooling times
- Higher energy bills
- Frost or ice on the coil
- Water leaking around the unit
Cleaning and maintaining the coil ensures the air conditioner works well. Dirty or damaged coils reduce cooling and increase energy use.
Maintenance Tips For Ac Coils
Cleaning the evaporator coilhelps keep the AC working well. Dust and dirt block airflow and reduce cooling power. Use a soft brush or vacuum to remove dirt gently. Avoid bending the thin fins on the coil. Clean coils help the AC cool the air faster and use less energy.
Cleaning the condenser coilis also very important. This coil sits outside and can get dirty from leaves, grass, and dust. Turn off the power before cleaning. Rinse the coil with water or use a soft brush to clear debris. A clean condenser coil helps the AC release heat better.
Preventing coil damagekeeps the AC safe and working longer. Avoid touching the coils with hard objects. Keep plants and debris away from the outdoor unit. Check coils for signs of rust or damage regularly. Proper care means fewer repairs and a longer life for your AC.
When To Call A Professional For Coil Issues
Calling a professionalis best when your air conditioner shows clear signs of coil issues. Watch for leaking refrigerant, which can cause poor cooling and higher bills. Strange noises or frost on the coils also signal trouble. A technician can find and fix hidden problems safely.
Regular inspections help catch coil problems early. Professionals check for dirt, damage, or blockages that reduce efficiency. Clean coils cool better and save energy. Scheduling annual maintenancekeeps your system running smoothly and extends its life.
Credit: coolbydesignfl.com
Frequently Asked Questions
Where Is The Evaporator Coil Located?
The evaporator coil is usually located inside the air handler or furnace. It’s positioned near the blower fan, and its primary function is to absorb heat from the indoor air. This process cools the air before it circulates throughout your home via ducts.
What Does The Condenser Coil Do?
The condenser coil is located in the outdoor unit of an air conditioner. Its main role is to release the absorbed heat from the indoor air to the outside. This process helps maintain a cool indoor environment, ensuring efficient cooling performance.
How To Access The Air Conditioner’s Coils?
Accessing the coils depends on the type of air conditioning system. For split systems, the evaporator coil is inside, and the condenser coil is outside. Always ensure the unit is off before opening panels or covers to avoid accidents or damage.
Why Is Coil Location Important?
The location of the coils affects the air conditioner’s efficiency and performance. Proper placement ensures optimal heat exchange, leading to effective cooling. Regular maintenance, like cleaning coils, is easier when you know their location, enhancing the system’s longevity.
Conclusion
The coil in an air conditioner plays a key role in cooling your home. You can find the evaporator coil inside the indoor unit. The condenser coil sits outside, usually near the compressor. Knowing these coil locations helps with maintenance and repair.
Keep the coils clean for the best air flow. Regular care keeps your AC running smoothly and cools your space well. Simple checks can prevent costly problems later on. Understanding these basics makes using your AC easier and more effective.
